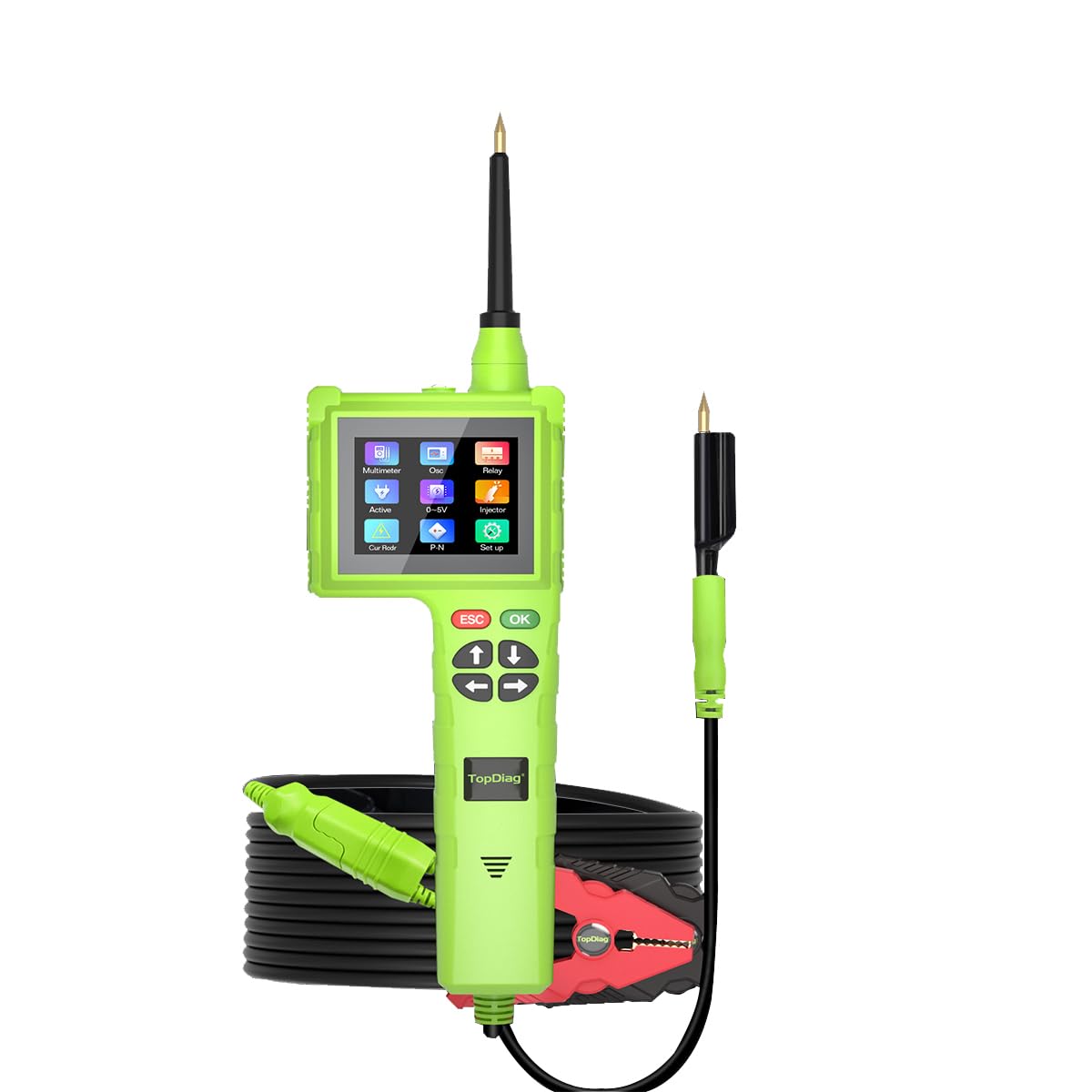

TopDiag P200 Pro Master Edition Automotive Circuit Tester High Measurement Accuracy Free Upgraded

P200 PRO is a quick voltage tester that can be turned on without selecting a function. The measurement accuracy is very high, reaching millivolt and milliampere levels. It also has high power and can measure automotive electronic parts with high power within 2000V. It has free lifetime support for upgrades.

Functions:

1.Intelligent identification of voltage/resistance
2.Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)
3.Relay test with Test box
4.Injector test (online and offline test)
5.Diode test
6.Oscilloscope function
7.0-5V adjustable power supply
8.Activation of vehicle components  (MAX 100AMPS)
9.Positive and negative polarity test
10.Intelligent circuit breaker protection (adjustable overload)
11.Screen style background optional
12.online upgrade
13.Built-in Multi Lingual.

Specifications:

Voltage measurement : Measurement range: 1mv~99.9V
Resistance measurement: Measurement range: 1 milliohm ~ 12Mega ohm
Current measurement: Measurement range: 0.001Amps~99.99Amps

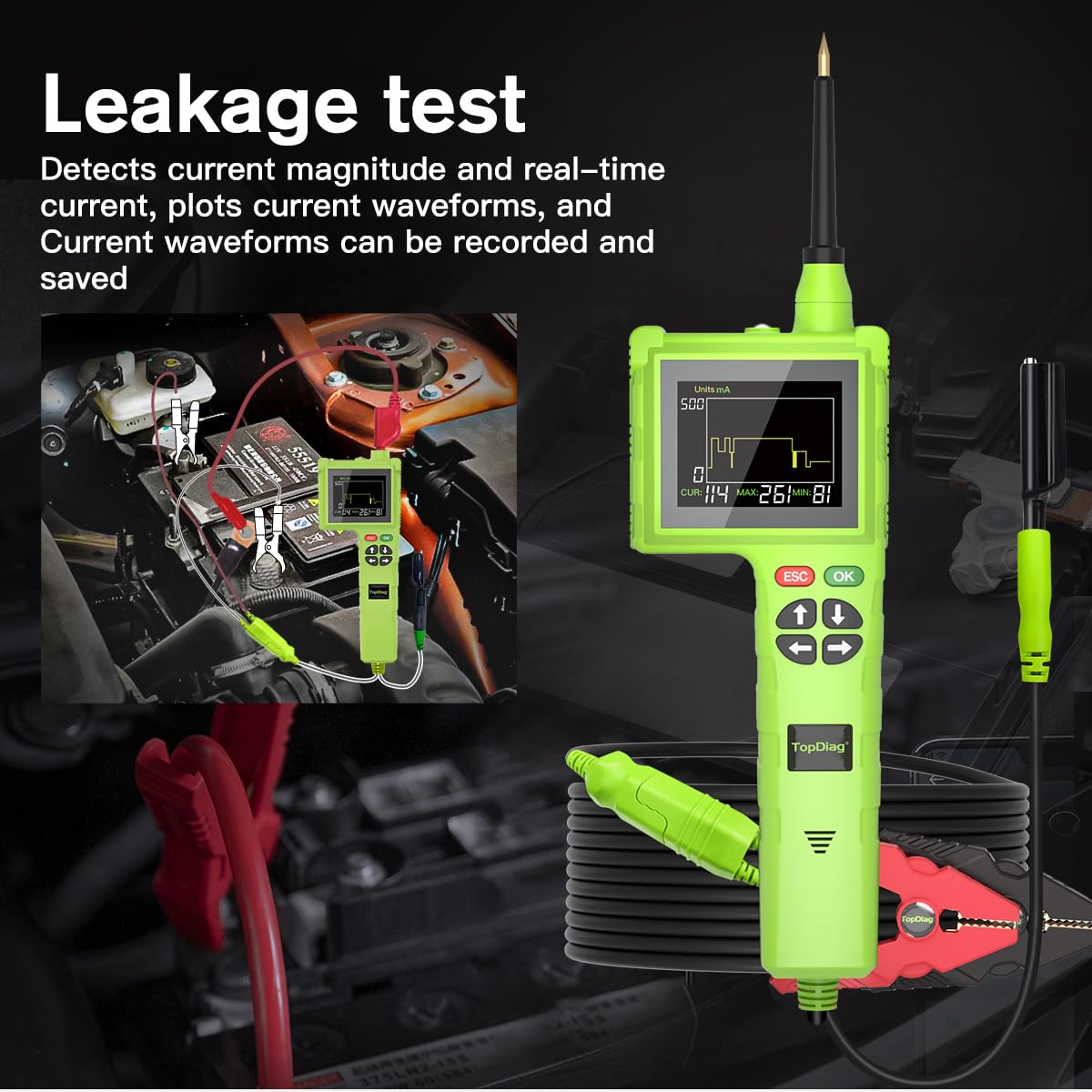

Leakage detection: Record the current leakage for one hour and playback review.
Frequency test: Range 1HZ-1MHZ

Feature:

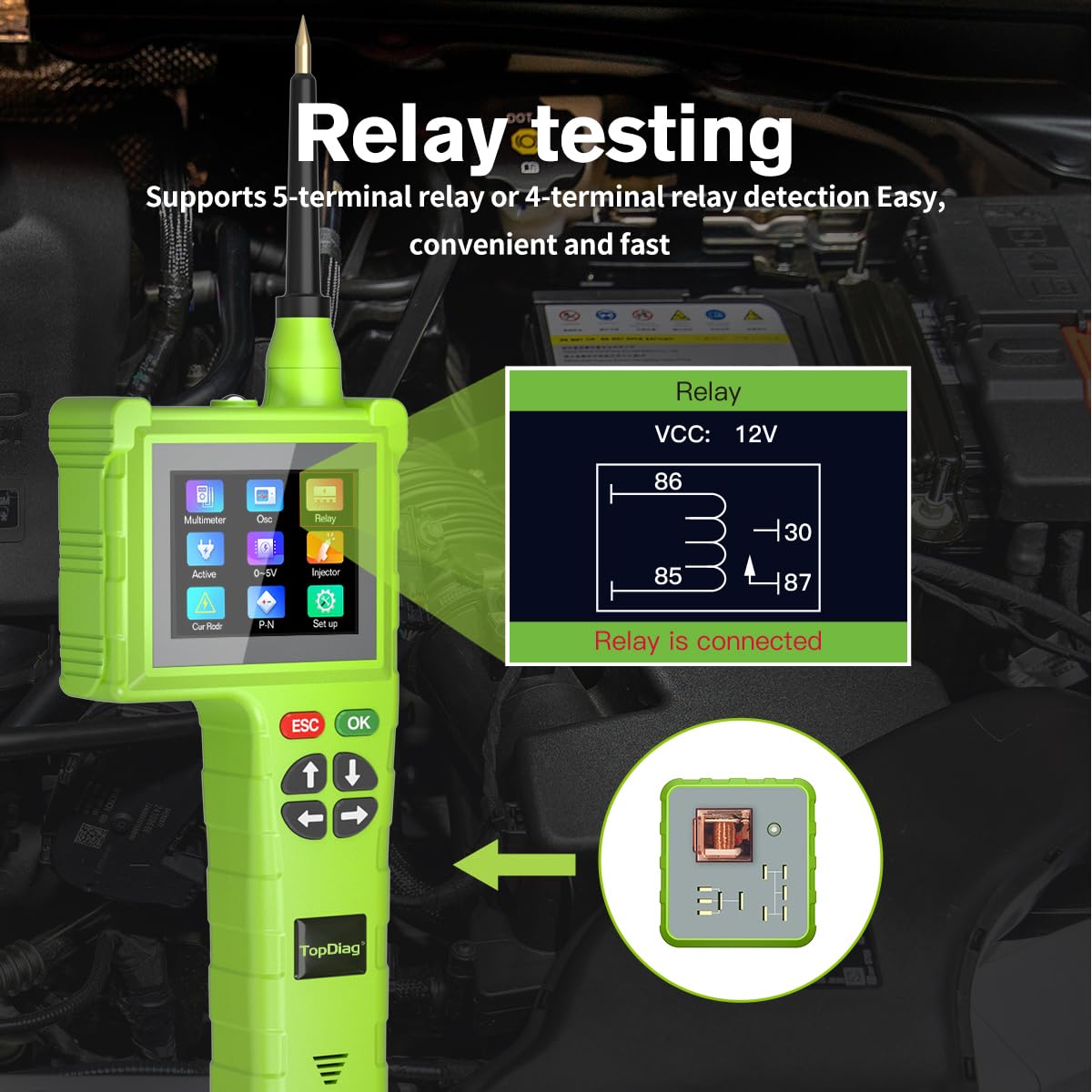

Relay test: Separate relay test box, Plug and Play.
Fuel injector detection: Support fuel injector power simulation.
Accurate capturing fuel injector signals and parameters. injection peak voltage, injection time, and ECM driver health.

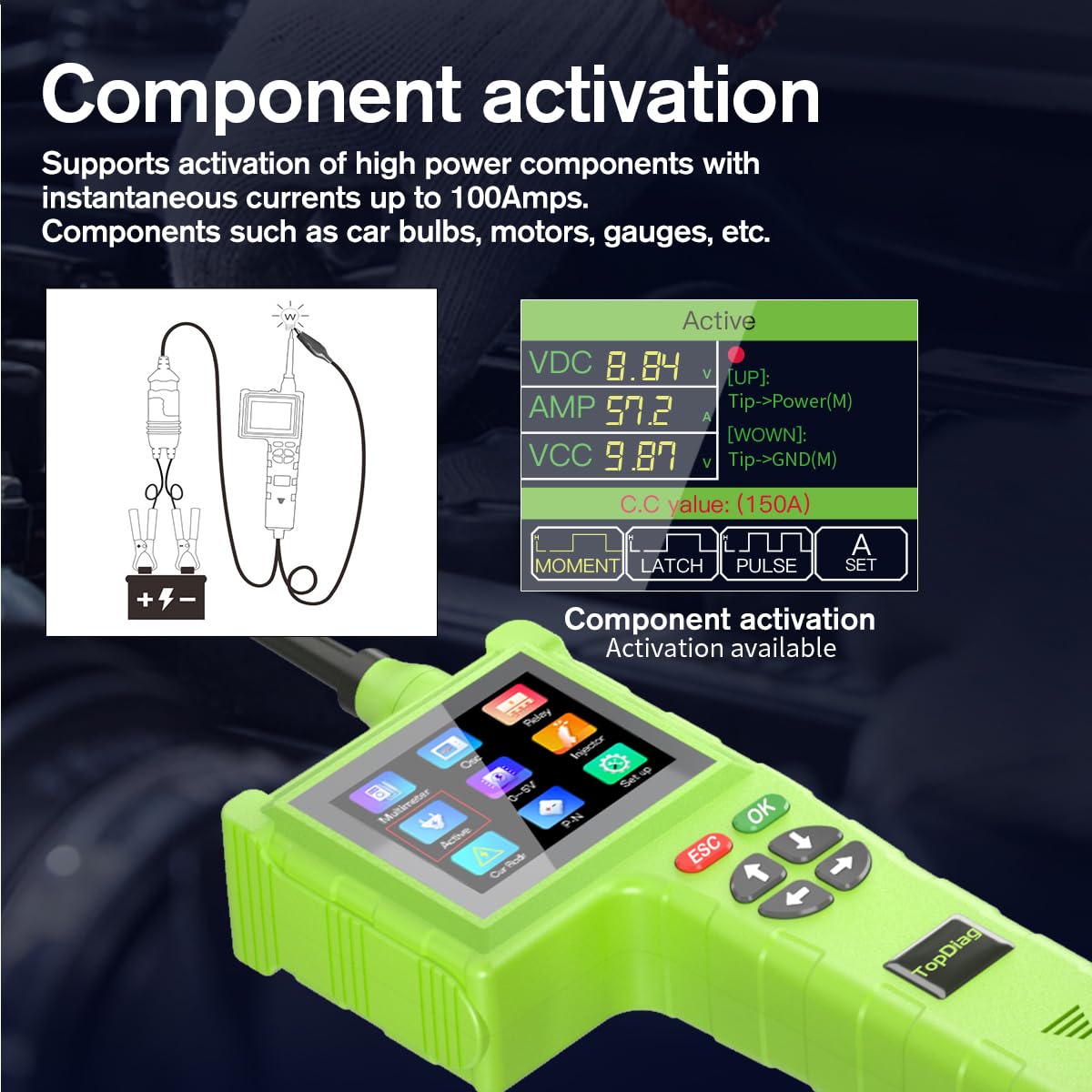

Component Activation: Support 3 test modes, Current value adjustable , up to 100Amps.
Oscilloscope test: Single Chanel oscilloscope testing for duty cycle, frequency, Signal analysis.
Safety voltage power supply: 0-5V adjustable, supplies safe voltage for testing PCM/ECM driver circuits and sensor working conditions
